Car Audio Products
Speakers
Amplifiers
Convertor & Drivers
RE Balance Amplifiers
RE 2 - 2 channel amplifier
真の音質ハイエンドパワーアンプ - 音の新基準
Max output power:40Wx2 (RMS, 1KHz,10ohm) / Input sensitivity(10Kohm): RCA -10dBV(0.3V), Balance -18dBV
(0.13V) / Max input level: RCA +8dBV(8V), Balance +10dBV(3.2V) / Load impedance: 4-16ohm / Consumption curent:Idling time(no
signal) 3A, Remote off time: 2mA / Size(mm): 320(W)x92(H)x504(D)
Max output power:40Wx2 (RMS, 1KHz,10ohm) / Input sensitivity(10Kohm): RCA -10dBV(0.3V), Balance -18dBV
(0.13V) / Max input level: RCA +8dBV(8V), Balance +10dBV(3.2V) / Load impedance: 4-16ohm / Consumption curent:Idling time(no
signal) 3A, Remote off time: 2mA / Size(mm): 320(W)x92(H)x504(D)
RE 2.65
Highest level SEPP amplifier
Max output power:65Wx2 (RMS, 1KHz, 8ohm) / Input sensitivity(10Kohm): RCA 1.6V / Consumption curent:Idling time(no
signal) 1A, Remote off time: 2mA / Size(mm): 250(W)x56(H)x326(D)
RE Strandard Amplifiers
RE amplifiers (RE 50 ~ RE 2) are true amplifiers which can drive speaker with thinking as it is synonymous with a changeable impedance, not a fixed resistance. Only RE can reproduce the original music signal with strict fidelity.
RE 2.2/ 2ch amplifier
Output power: 2x40W / Input sensitivity : 0.25V / Input impedance : 10Kohm / Load impedance : 4-16 ohm / Consumption current : Idling time(no signal) - 3A, Remote off time : 2mA / Size (mm) :320(W)x92(H)x504(D)
RE 50Hi / Hi-input 2ch amplifier
The RE 2 amplifier, which has easily surpassed sound quality of home audio amplifiers, is now equipped with a balanced line input stage, resulting in further improved sound quality.
When the signal form the source unit is transmitted to the RE 2, it is converted to a balanced signal by a BLD (Blanced line driver) at the input of the RE 2. This low noise signal is then transmitted by the constant current driving of RE 2 to the connected speakers.
The balanced line input stage of RE 2 takes music reproduction to a higher place.
We set out to create a SEPP amplifier that would be a part of our RE Series and offer such excellent sound quality that it would not bring dishonor to the Phass RE name and reputation. We accomplished our objective and proudly offer the RE 2.65 as the secondary SEPP based RE Series amplifier. NON-NFB circuit produces appropriate output power suitable for delivering electric current to speakers with quite low noise, allowing the amplifier to easily control speakers and produce vivid sound. Our sound design concept places RE 2.65 in the highest echelon of SEPP amplifiers.
RE 2.2 is one of our top grade model in the RE amplifiers. It has been constructed by our originally developed transformers and audio grade electric parts wiout any compromises. It achieves a great ability that can fully control speakers and it realizes a exceptional reproduction of nature sound music.
RE50Hi is an amplifier has a high input stage without a RCA signal input stage. It can transmit the music signal which inputted from another amplifier to the connected speakers simply as the constant current driving amplifier. In conjunction with the original head unit or amplifier with the speaker output power it can change the original sound totally to articulate organic sound easily.
Output power :2x50W / Input sensitivity : 5V / Load impedance : 4-16 ohm / Consumption current : Idling time(no signal) - 3A, Remote off time : 2mA / Size mm) :280(W)x74(H)x320(D)

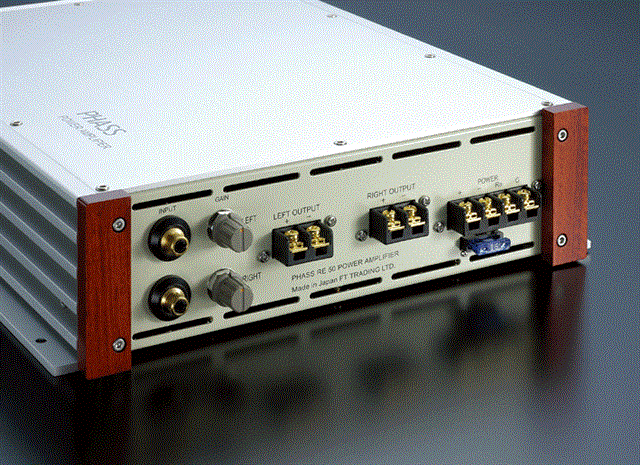

RE 50 / 2 ch Amplifier
RE 50 series of amplifiers are more compact, and less expensive than the RE 2.2. But, they still represent the essence of our RE line of amplifiers, with constant current driving ability and dynamic, articulate and natural music reproduction.
Output power : 2x50W / Input sensitivity : 0.25V / input impedance : 20 K ohm / Load impedance : 4-16 ohm / Consumption current : Idling time(no signal) - 3A, Remote off time : 2mA / Size (mm) :280(W)x74(H)x320(D)
